Mediatek officially introduces the Mediatek Dimensity 9300, top system-on-chip.
Dimensity 9300 will be equipped with four Cortex-X4 CPU cores, one of which has a clock speed of up to 3.25 GHz, while the other three are 2.85 GHz.
There are four Cortex-A720 CPU cores, each with a speed of 2 GHz, so there are a total of eight CPU cores with a 1+3+4 cluster configuration. As for the graphics processor (GPU), it is using the ARM Immortalis-G720
Dimensity 9300's performance will be 10 percent higher than its potential rival from Qualcomm, Snapdragon 8 Gen 3. Snapdragon 8 Gen 3 will allegedly come with 1 Cortex-X4 CPU core with a speed of 3.19 GHz, 5 Cortex-A720 2.96 GHz cores, and 2 Cortex-A520 2.27 GHz so it has a 1+5+ cluster configuration. 2.

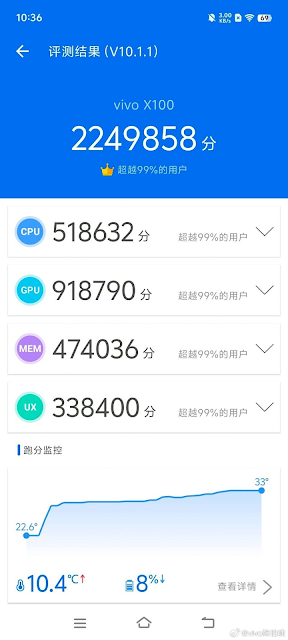

AnTuTu Benchmark Score
GeekBench Score
No Efficiency Core?
The MediaTek Dimensity 9300 CPU configuration raises questions about power consumption because the eight cores used (4 Cortex-X4 and 4 Cortex-A720) are high-performance cores.
There is no efficiency core, aka a power-saving CPU core as is usually found in SoCs, to handle light tasks while saving power.
The Dimensity 9300 itself will be the successor to the previous flagship, the Dimensity 9200, which is now used in high-end devices such as the Oppo Find N3 Flip and Vivo X90.
MediaTek is believed to be producing the Dimensity 9300 using 4nm fabrication process technology from Taiwan Semiconductor Manufacturing Company (TSMC), which is its manufacturing partner. The latest news says that the Dimensity 9300 will be launched this month.
Here are the specifications
- Mediatek Dimensity 9300 22.7 Billion Transistors.
- 4nm TSMC 3rd Generation (N3E)
- 8 Cores
- 1x Cortex X4 3.25Ghz
- 3x Cortex X4 2.85Ghz
- 4x Cortex A720 2.0Ghz
- Arm Immortalis-G720 MC12 GPU
- Latest RAM LPDDR5T 9600Mbps + 8% More power efficient + 13% faster
- Storage UFS 4.0 + MCQ
- ISP Camera Support up to 320MP
- Video Support 4K 60FPS- 8K 30FPS
- Video Encoding H.264 & HEVC
- Video Playback H.264, HEVC, VP-9z AV1
- Display Max Refresh Rate
- 4K up to 120Hz & WQHD up to 180Hz
- AI Processing Unit MediaTek APU 790
- (Generative AI)
Improvements
- 15% single-core performance upgrade⬆️
- 40% multi-core performance upgrade⬆️
- Improved multi-core performance by 40%.
- 4X Cortex-X4 performance cores up to 3.25GHz
- 4X Cortex-A720 efficiency cores up to 2.0GHz
- 18MB L3 + SLC cache: 29% larger than the previous generation
- Multi-core power savings of up to 33% compared to previous generation CPUs
- Production of 3rd generation TSMC 4nm chips
- Optimized 2nd generation thermal package design by MediaTek
GPU upgrade ⬆️
- Arm GPU ray tracing Immortalis-G720
- 46% additional performance
- Power savings of 40%
- Memory bandwidth savings of 40%
Improved AI Technology ⬆️
- MediaTek APU 790 (Generative AI)
- 8x faster transformer-based generative AI
- Improved 2x faster integer & floating-point computing
- 45% more power efficient
- Up to 33 billion parameters
- Proprietary hardware accelerated memory compression technology
- First to support LoRA Fusion on device
Improved ISP Camera ⬆️
- Imagiq 9th Generation
- AI Semantic Analysis Video Engine
- 4K cinematic mode with depth of field and bokeh points
- 100% pixel-level autofocus + dual-lossless zoom
- Standalone OIS for best-in-class image stabilization, triple the speed of stabilization operations
GNSS
- GPS L1CA+L5+ L1C, BeiDou B1I+ B1C + B2a +B2b, Glonass L1OF, Galileo E1 + E5a +E5b, QZSS L1CA+ L5, NavIC L5
- Wi-Fi 7 (a/b/g/n/ac/ax/be) ready
- Wi-Fi Antenna 2T2R, Bluetooth 5.4
- Security Features
- Secure Processor, HWRoT
- Arm Memory Tagging Extension (MTE) Technology
- CC EAL4+ Capable, FIPS 140-3, China DRM
- Complete 4G & 5G Network ✅
Source : @whylab and FB Group
